Guider 3 Ultra

Extraordinary Speed
Open a High-Speed Era of Professional
Applications

Guider 3 Ultra's fast algorithm and lightweight design ensure stable, high-speed operation and efficient production of complex models.

Dual extruder design for
building complex models

Ultra-large build volume Max. volume: 330*330*600mm

24/7 Continuous and
stable printing

Easy to use
One-click printing

500mm/s (printing speed) 20000mm/s² (acceleration)

Raft Support Mode
Saves approximately 70% of printing time
dual extruder
dual extruder mb

Dual Extruder Design for Building Complex Models

Supports removable and soluble materials for complex models with overhangs, bridges, and hollow structures.

Seamless Filament Switch
When the filament runs out, the sensor automatically switches to the other extruder, ensuring uninterrupted printing.

Raft Support

Combining self-supporting and breakaway supports, it reduces support printing time by ~50% and ensures easy removal.
time saved
time saved mb

Ultra high-efficiency printing <br> Why time saved?

The support uses the same material as the model, reducing extruder switches and waiting time, cutting model print time by about 70%.
FAST
FAST MB

Designed for Fast, Efficient Production

Printing speed up to
500mm/s

Acceleration up to
20000mm/s²

Flow rate up to
32mm³/s
air cooling
air cooling mb

Air Cooling System

The dual-fan cooling system rapidly cools extruded filament, ensuring higher accuracy in high-speed printing.

Ultrafast and Ultrastable
2-5 times higher printing speed

Approximately 90% of regular-size models can be printed within 24 hours.

Vase
298*296*328mm 0% Infill
Guider 3 Ultra
5h27min
Other
11h57min
Fixture
305*105*100mm 70% Infill
Guider 3 Ultra
13h44min
Other
30h04min

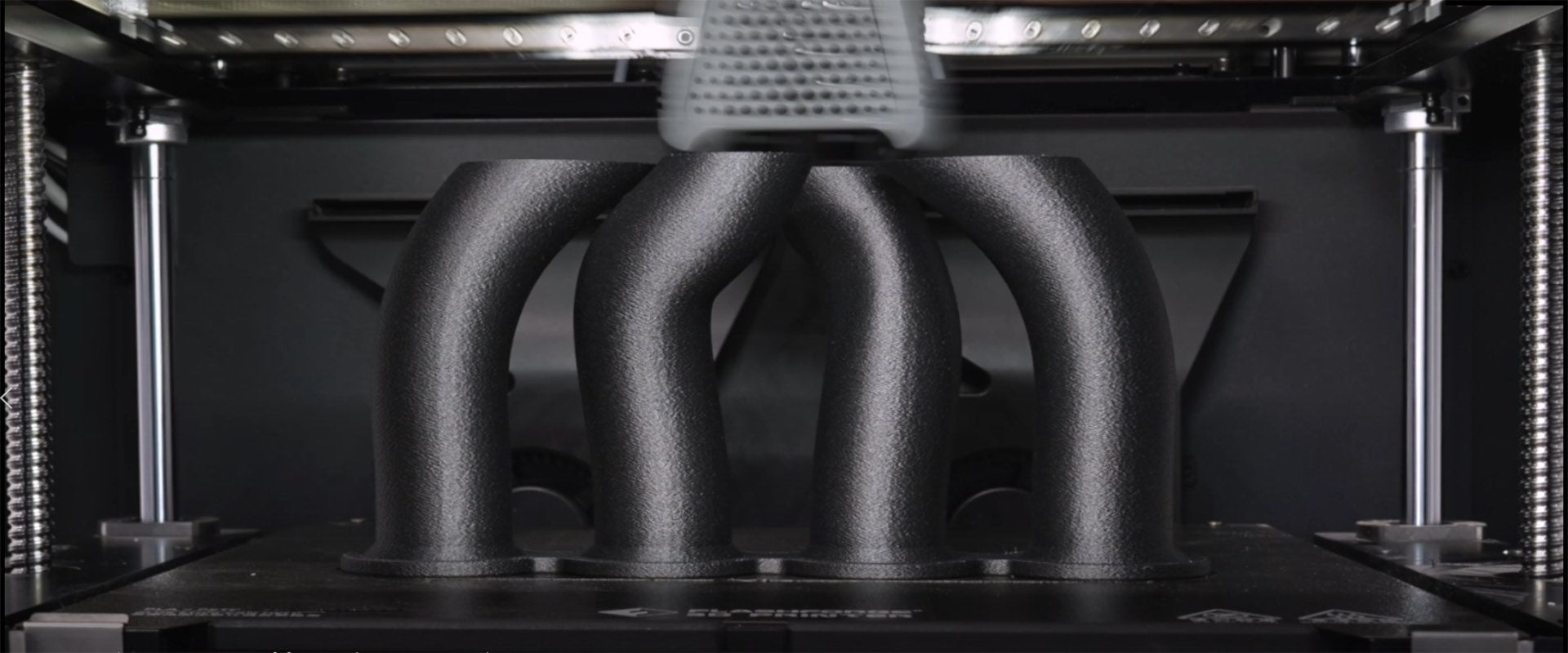

Gas manifold
84*84*350mm 15% Infill
Guider 3 Ultra
10h32min
Other
22h49min
large size mb

Large Size, Expanding Boundaries

Excellent Surface Quality

Accurate layer positioning, pressure compensation, and vibration suppression ensure smooth, flawless printing without ringing.
high precision

High Printing Precision

Name: Battery box assembly
Material: ABS
Application: Dimensional verification and functional testing of multiple kits in the design and R&D phase

high precision 2
fine and smooth
fine and smooth mb

Fine and Smooth

Sharp corner printing effect

Name: Artistic sculpture
Material: PLA-CF
Application: Art Display
Multi-applications
End-Use Parts

Fixture part
PET-CF
Parts for final assembly

Mold part
High-temperature PA-CF
Low-temperature plastic injection molding
Simplify Printer Management
Simplify Printer Management mb

Simplify Printer Management,Whether One or Many

Cluster Management;

location-based group control;

remote printing;

repeated jobs can be directly processed via the history.

Support a wide range of general and engineering filaments

PLA / ABS / HIPS / ASA / PETG / CoPA / PLA-CF / PETG-CF / PAHT-CF / PAHT-GF / PET-CF / PET-GF / PA12-CF / PA-CF / PA-GF / NexPA-CF25

Note: For carbon fiber reinforced materials, PAHT-CF and PET-CF are recommended. It is advised to use them with special breakaway support materials.

Compatible with third-party filaments
G3U MODEL
G3U MODEL MB

Specification

Extruder Quantity

2

Input

AC100-240V

Position Precision

±0.15 mm or ±0.002mm/mm
(The larger values shall prevail)

Output

50/60Hz，850W Max

Positioning Accuracy

X/Y-axis 0.011 mm; Z-axis 0.0025 mm

Printing Connection

7-inch

Printing Speed

Max.500mm/s

Smart LCD Touch Screen

√

Printing Acceleration

20000mm/s²

Quick-release Extruder

√

Specification

Extruder Quantity

2

Position Precision

±0.15 mm or ±0.002mm/mm
(The larger values shall prevail)

Positioning Accuracy

X/Y-axis 0.011 mm; Z-axis 0.0025 mm

Printing Speed

Max.500mm/s

Printing Acceleration

20000mm/s²
