Zero Waste

500% Faster 500% Faster

Fully Enclosed & Actively Controlled

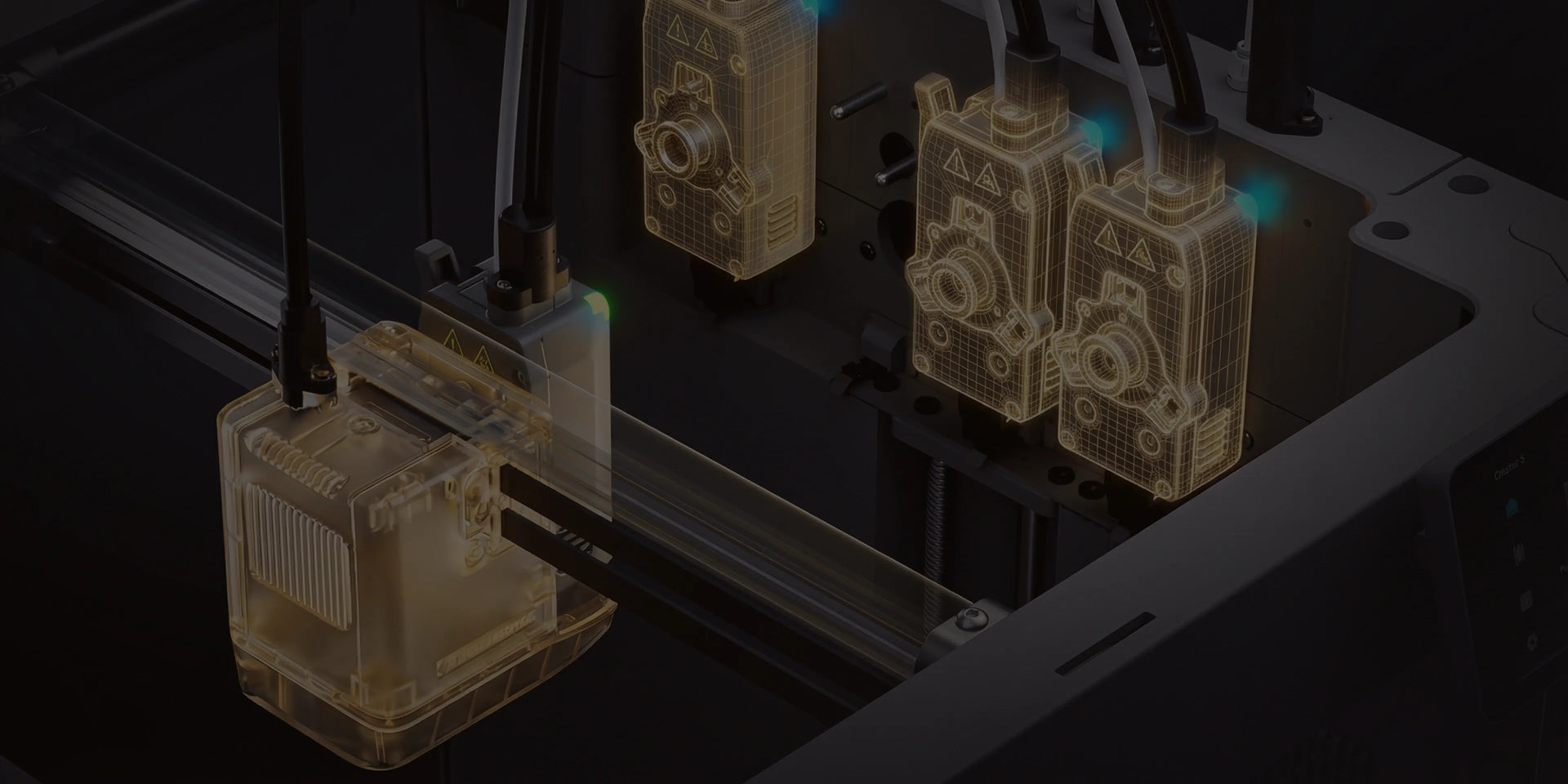

FlashSwap™

Why Choose Creator 5 Pro?Why Choose Creator 5 Pro?

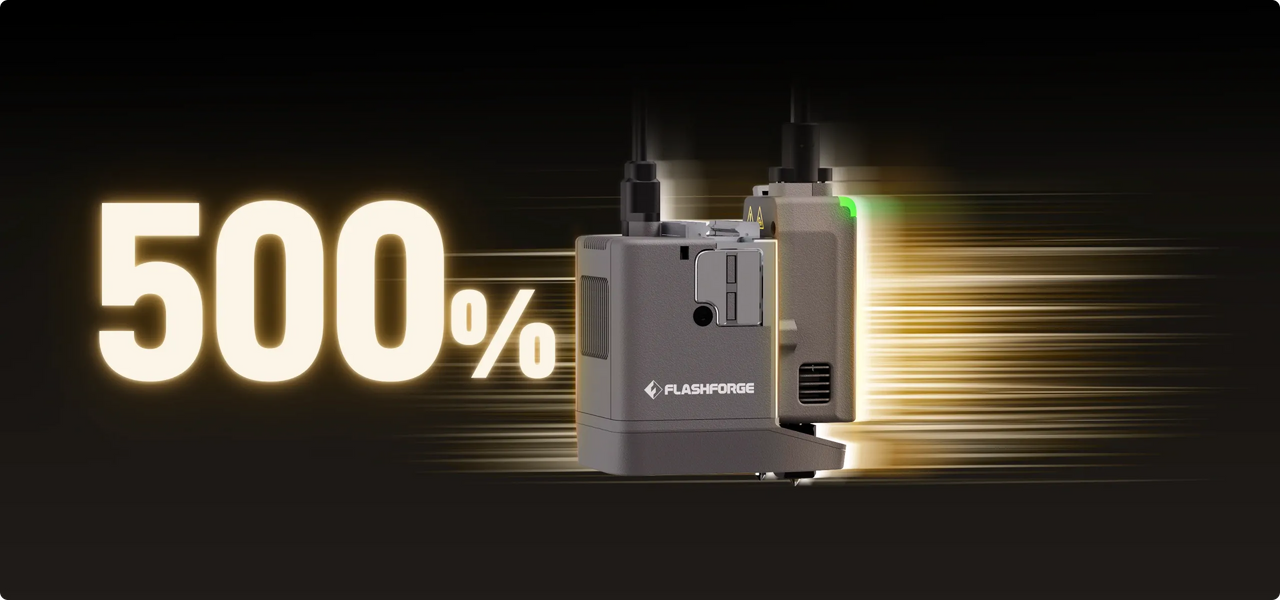

Multicolor Printing Up to 500% FasterMulticolor Printing Up to 500% Faster

Multicolor Printing Up to 500% Faster

Zero Purge Waste During Material SwitchingZero Purge Waste During Material Switching

Zero Purge Waste During Material Switching

Professional-Grade UpgradesProfessional-Grade Upgrades

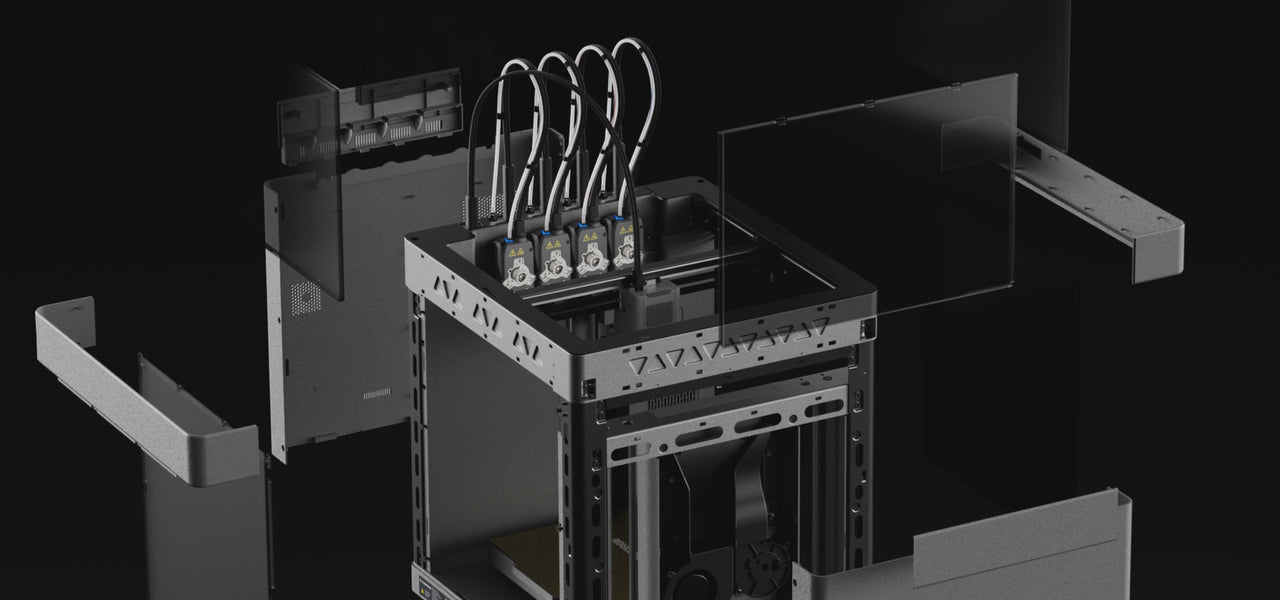

All-in-One ProtectionAll-in-One Protection

Safe, Quiet, and Stable Printing—Every TimeSafe, Quiet, and Stable Printing—Every Time

Our fully enclosed design keeps you, your printer, kids, and pets safe, while controlling fumes and reducing
noise from 65 dB to 55 dB. The stable temperature ensures smoother layers and consistently high-quality prints.Our fully enclosed design keeps you, your printer, kids, and pets safe, while controlling fumes and reducing noise from 65dB to 55dB. The stable temperature ensures smoother layers and consistently high-quality prints.

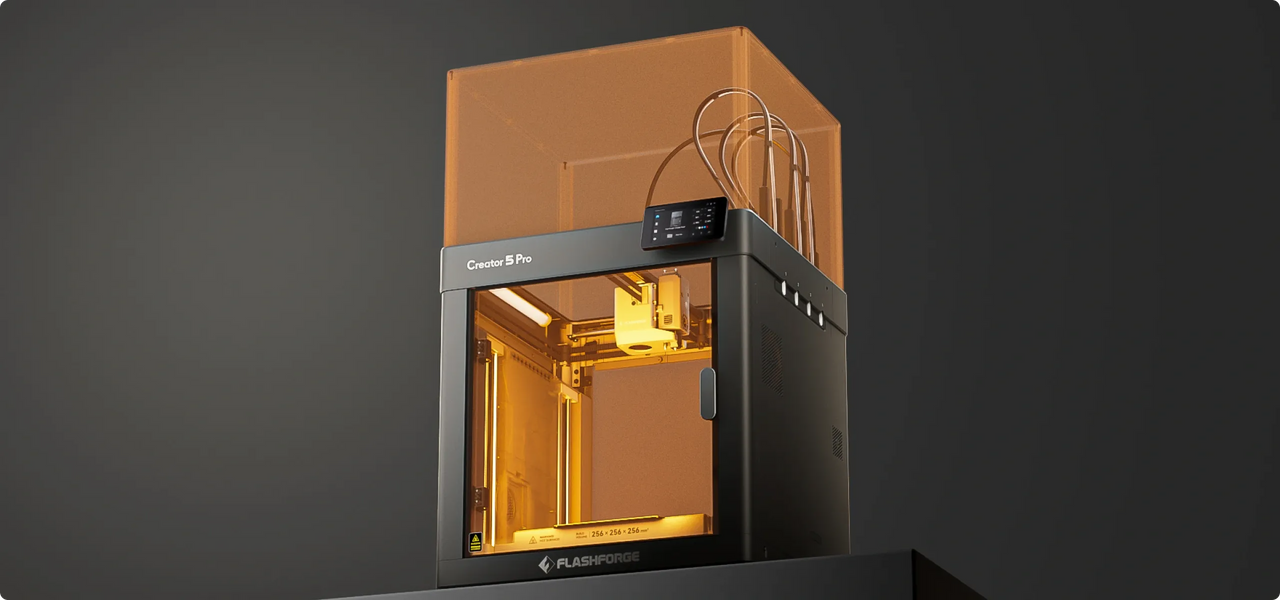

Heating ModeHeating Mode

Rapidly heats to 65°C with precise controlRapidly heats to 65°C with precise control

Eliminates warping & cracking for ABS, ASA, PC & PA — ensuring perfect dimensional accuracy.Eliminates warping & cracking for ABS, ASA, PC &
PA — ensuring perfect dimensional accuracy.

Rapidly heats to 65°C with precise control

Cooling ModeCooling Mode

Draws in cool air to
quickly cool the enclosureDraws in cool air to quickly cool the enclosure

Perfect for PLA, TPU, PETG & PLA-CF — warp-free printing with the door closed.

Safe air, perfect prints.Safe air, perfect prints.

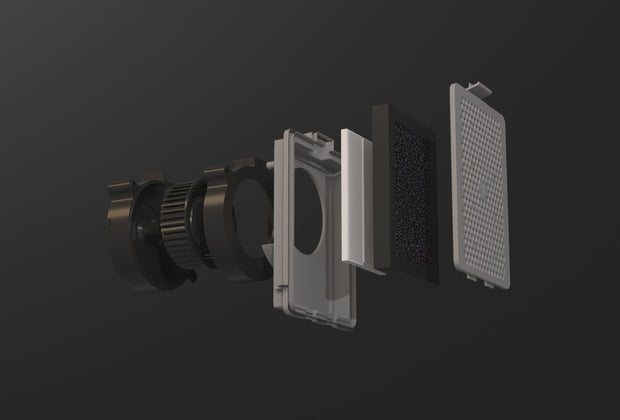

Top-Tier
Air PurificationTop-Tier Air Purification

Featuring H13 HEPA (medical grade) and premium Coconut Carbon.
Eliminates dust & VOCs released by ABS, ASA, and Nylon.

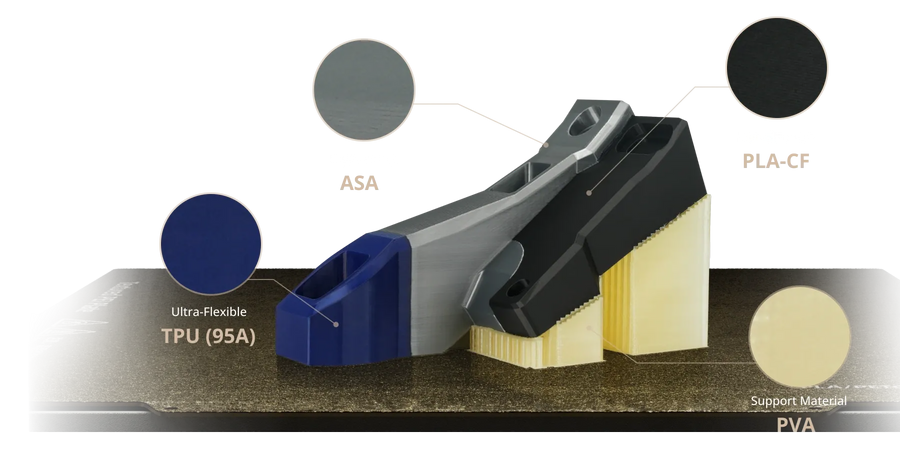

Multi-Material Structures
In A Single PassMulti-Material Structures In A Single Pass

Accelerate your workflow by combining distinct material properties in one seamless print job.

Multi-Material Structures In A Single Pass

FeaturesFeatures

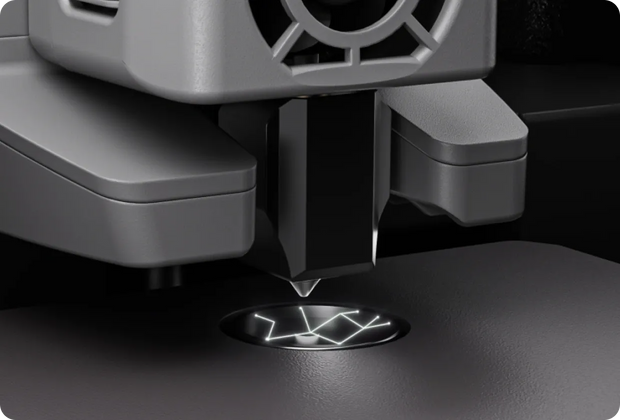

Fully Automatic Multi-
Toolhead Offset CalibrationFully Automatic Multi-
Toolhead Offset Calibration

Fully Automatic Multi-Toolhead Offset Calibration

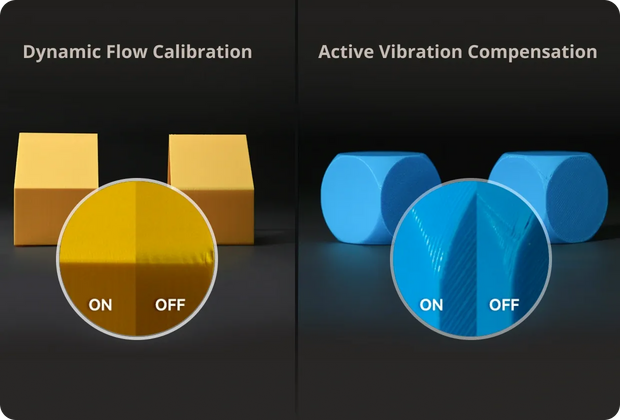

Flawless Surfaces,
Enabled by Auto-CompensationFlawless Surfaces,
Enabled by Auto-Compensation

Flawless Surfaces, Enabled by Auto-Compensation

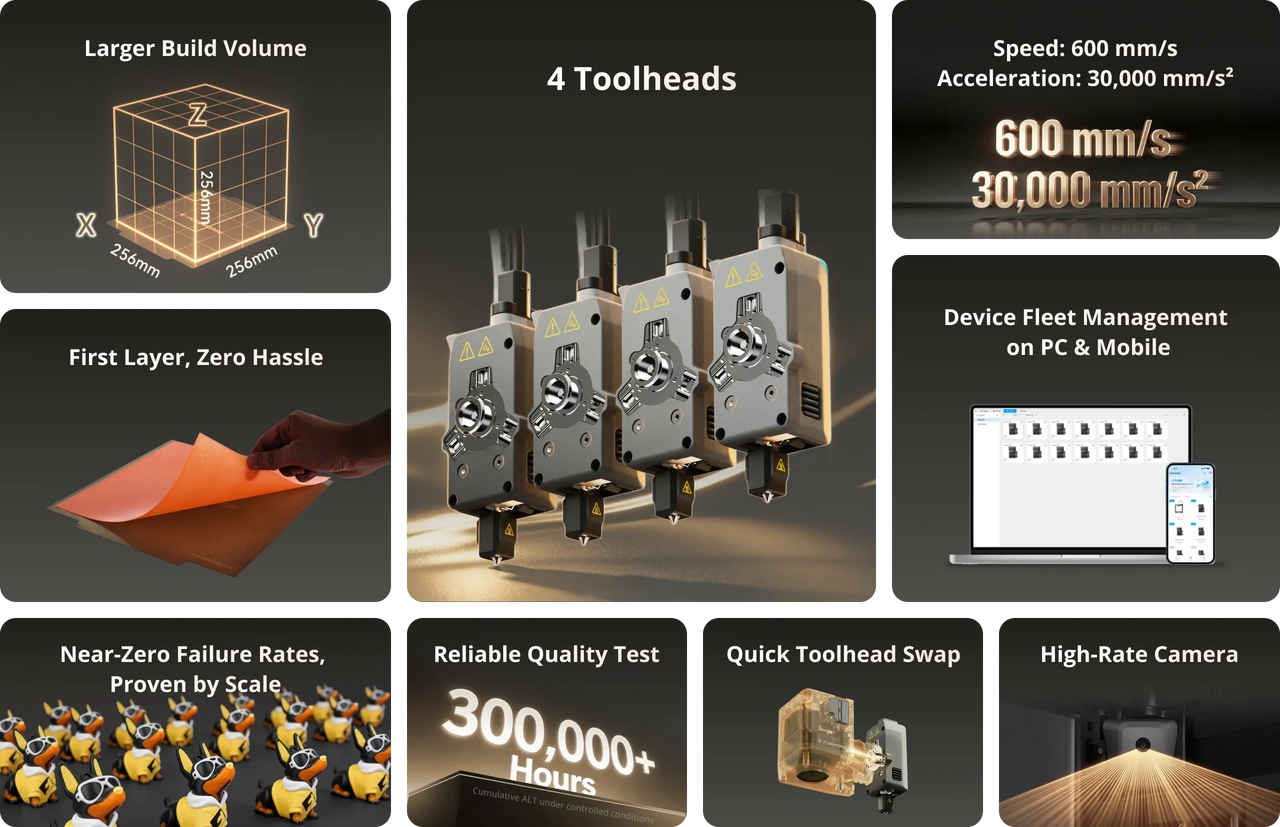

features

Versatile Solutions for Every CreatorVersatile Solutions for Every Creator

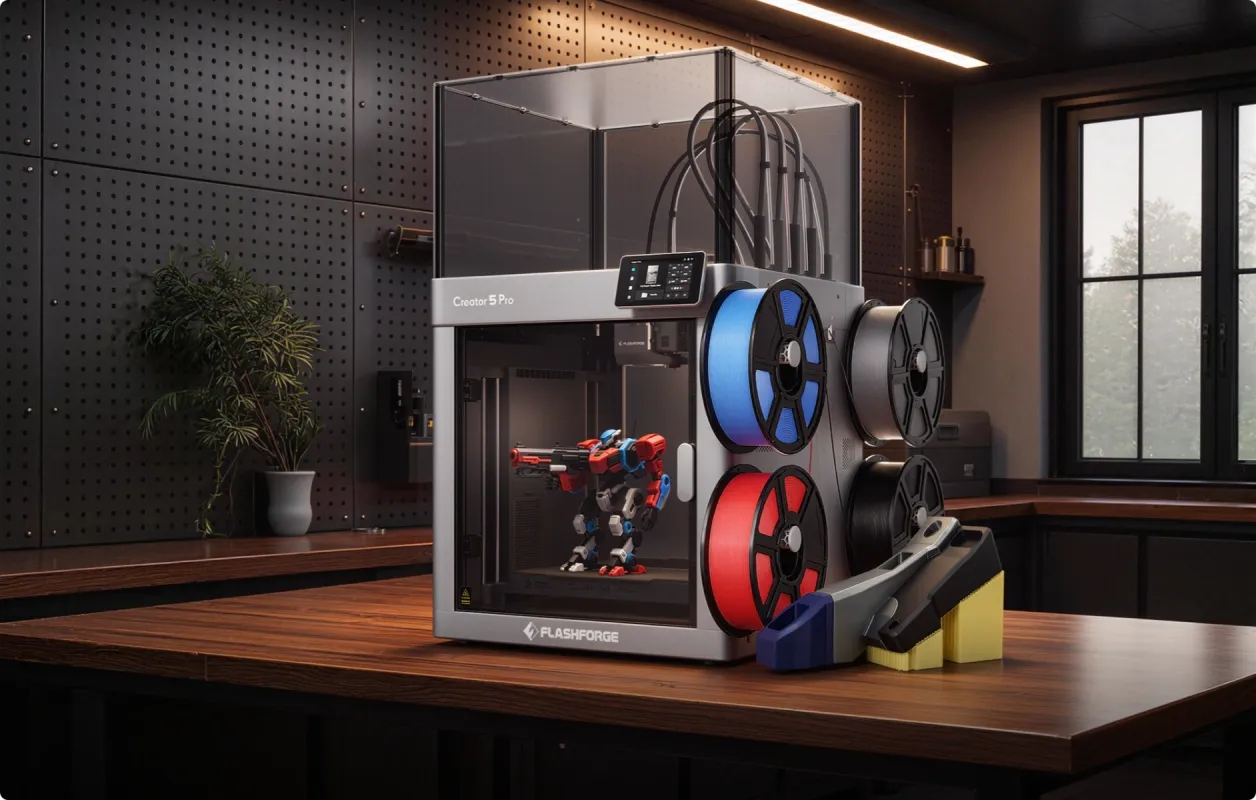

Makers

Makers

Families

Families

Education

Education

Engineering Design

Engineering Design

Specifications

Creator 5 Pro
Extruder Quantity

4 Independent Toolheads

Build Volume

256 × 256 × 256 mm

Layer Thickness

0.1 – 0.4 mm

Maximum Flow Rate

32 mm³/s

Travel Speed

Max. 600 mm/s

Print Speed

Max. 300 mm/s

Acceleration

Max. 30,000 mm/s²

Nozzle Diameter

0.4 mm (Standard)
0.25 mm / 0.6 mm / 0.8 mm

Max Bed Temp

Max. 120 °C

Build Plate

PEI Flexible Steel Build Plate (Textured)

Auto Leveling

✓ (Automatic)

Max Extruder Temp

320 °C

Removable Nozzle

✓

Display

4-inch 800 × 480 Full-Color Touchscreen

Dynamic Flow Calibration

✓ (Auto PA Calibration)

Filament Detection

✓ (Run-out Sensor)

Power Outage Recovery

✓

Chamber Lighting

✓

Remote Monitoring

✓ (Built-in Full HD Camera, 1280*720 @ 30 fps)

Multi-Printer Management

✓

Connectivity

USB / WiFi

WiFi

2.4 GHz / 5 GHz Wi-Fi

Slicing Software

Flash Studio

APP

Flash Studio

One-Touch Power On/Off

✓

Recommended Filaments

PLA, PETG, TPU-90A (Top external mount), TPU-95A, TPU-64D, PLA-CF, PETG-CF, SILK, PVA, BVOH, S-Multi, S-PAHT, ABS, ASA, PA-CF, PET-CF, PAHT-CF, ASA-CF, ASA-GF, ABS-GF, PPA-CF, PPS-CF, HIPS

Packaging Dimension

520x498x540 mm

Printer Size

520*425*722 mm（including filament tube and filament holders）
442*413*722 mm（without filament tube and filament holders）

Weight

Net: 18.1kg ; Gross:23.1kg

Input

Input: 100~120V/200~240V AC ，50/60Hz
1200W

External Spool Holders

4

Structure

Enclosed Frame Design

Active Chamber Heating

Supported (Max 65 °C)

Air Filtration

HEPA13 Filter + Activated Carbon

Door Detection

Supported (Front Door & Top Cover)

Auxiliary Cooling

Supported (Auxiliary Cooling Fan)

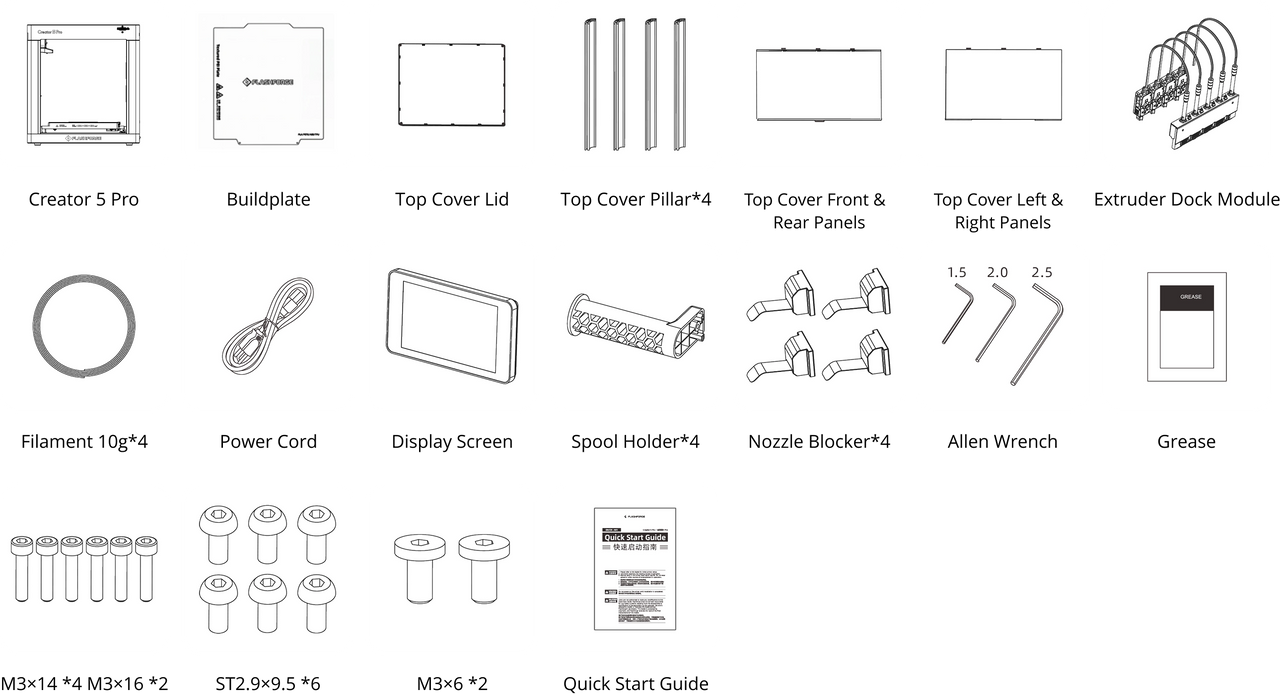

Packing ListPacking List
