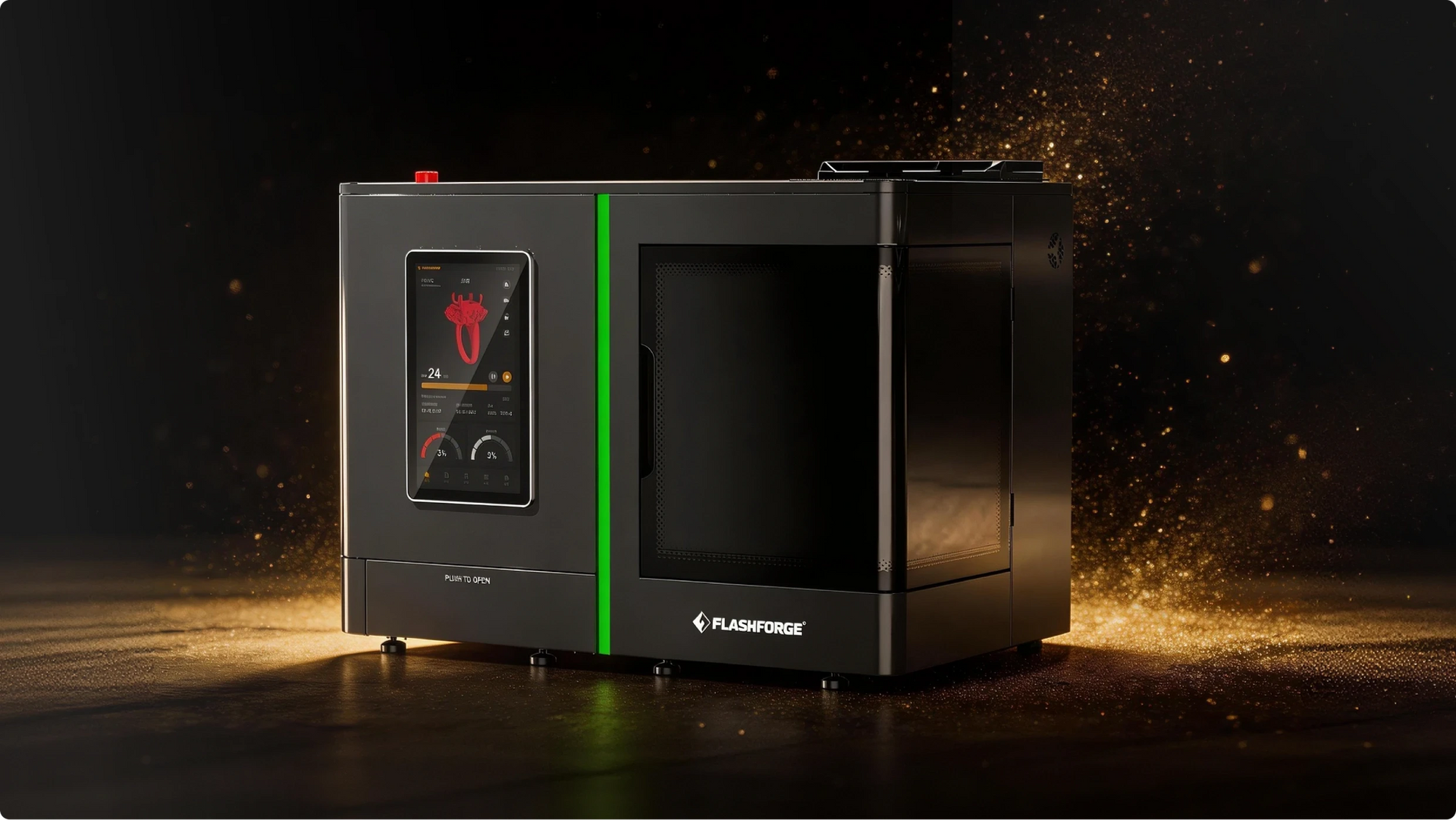

The WJ51C is a compact desktop wax 3D printer designed for jewelry studios and small manufacturers. Based on MJP technology, it enables one-click printing of high-precision wax patterns for rapid prototyping and small-batch production.

It delivers industry-leading resolution and enhanced surface quality through optimized hardware and software, producing smooth, detailed, and casting-ready wax models with ease.

With a build volume of 235 × 138 × 100 mm, industry-leading resolution of 2900 × 2900 × 1700 DPI, and a 15 μm layer thickness, the WJ51C delivers excellent detail and smooth surface quality. Its dimensional accuracy of ±0.04 mm / 20 mm ensures reliable, casting-ready results.

The WJ51C offers a build volume of 235 × 138 × 100 mm, making it ideal for high-precision jewelry patterns, rapid prototyping, and small-batch production.

WJ51C is a compact desktop wax 3D printer designed for small to medium jewelry workshops, while Waxjet 510 is an industrial floor-standing system built for larger-scale production. The core difference lies in flexibility versus production scale.

In terms of size and installation, WJ51C measures 865 × 510 × 654 mm and weighs 115 kg, making it easy to place on a desktop. In contrast, Waxjet 510 is significantly larger at 1352 × 775 × 1600 mm and weighs 480 kg, requiring dedicated floor space. This makes WJ51C much more space-efficient.

For build volume, WJ51C offers 235 × 138 × 100 mm, while Waxjet 510 provides a larger 289 × 208 × 100 mm, making it more suitable for batch production.

Regarding printing performance, both machines feature the same resolution of 2900 × 2900 × 1700 DPI with a 15μm layer thickness. However, WJ51C achieves improved surface quality through system optimization.

Both printers use the same materials, including FFWJ1200 (red) for model material and FFMS3200 (white) for support material. The difference lies in packaging: WJ51C uses smaller wax blocks (72g and 180g), while Waxjet 510 uses larger bottle formats (1.5kg and 1.6kg).

The WJ51C is designed for the gold jewelry manufacturing market, particularly for producing wax patterns used in gold (including traditional and 5G craftsmanship), K gold, as well as silver and copper jewelry. It primarily targets specialized customer groups such as sample wax developers and small-batch wax production providers, including gold and K gold factories, partner manufacturers for jewelry brands, wax 3D printing studios, silver and copper jewelry factories, integrated printing service providers, casting houses, and jewelry equipment distributors.

The WJ51C uses solid wax materials in block form, including structural wax and support wax. These materials are optimized for MJP printing and investment casting workflows.

The support wax can be dissolved using a dedicated solvent solution at controlled temperature, allowing safe and clean removal without damaging fine details.

Yes, the WJ51C features user-friendly software and a streamlined workflow, enabling one-click printing and easy operation even for users new to wax 3D printing.

Compared to resin printers, the WJ51C produces true wax patterns with better burnout performance, smoother surfaces, and more reliable casting results, especially for high-end jewelry.

To get an accurate quote and professional consultation, simply leave us a message. we’ll respond within 24 hours. Alternatively, you can contact a local distributor in your country to inquire about the WJ51C cost directly.
