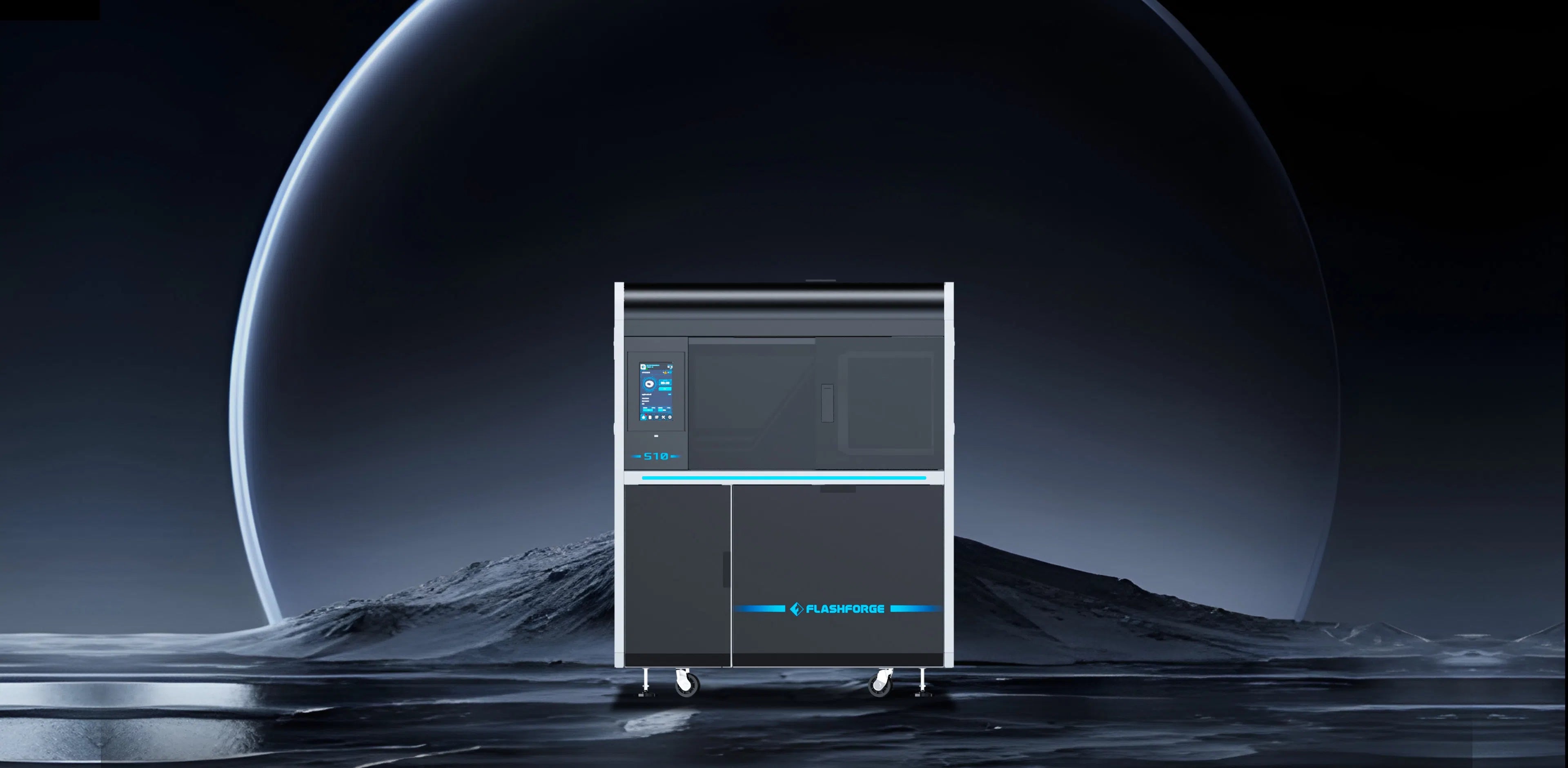

Flashforge WaxJet 510 3d printer
Flashforge WaxJet 510 3d printer

WaxJet 510

WaxJet 3D Printing Precision Perfected
Born for K-Gold Jewelry Casting
Comparison between Flashforge Waxjet 410 and Waxjet 510 3d printer
Comparison between Flashforge Waxjet 410 and Waxjet 510 3d printer

Product upgrade comparison

WaxJet 410
Printing ModeXHD
Mode:1200*1200*1600 DPI
Layer Thickness
16um
Printing Material
Purple Wax + White Wax
Material Specification
1.17kg/bottle+1.30kg/bottle
Prototype VerificationSmall-scale Model Production
WaxJet 510
Printing Mode
XHD Mode: 2900*2900*1700 DPI
Layer Thickness
15μm
Printing Material
Red Wax + White Wax
Material Specification
1.50kg/bottle + 1.60kg/bottle
Prototype Verification High-precision Model Production

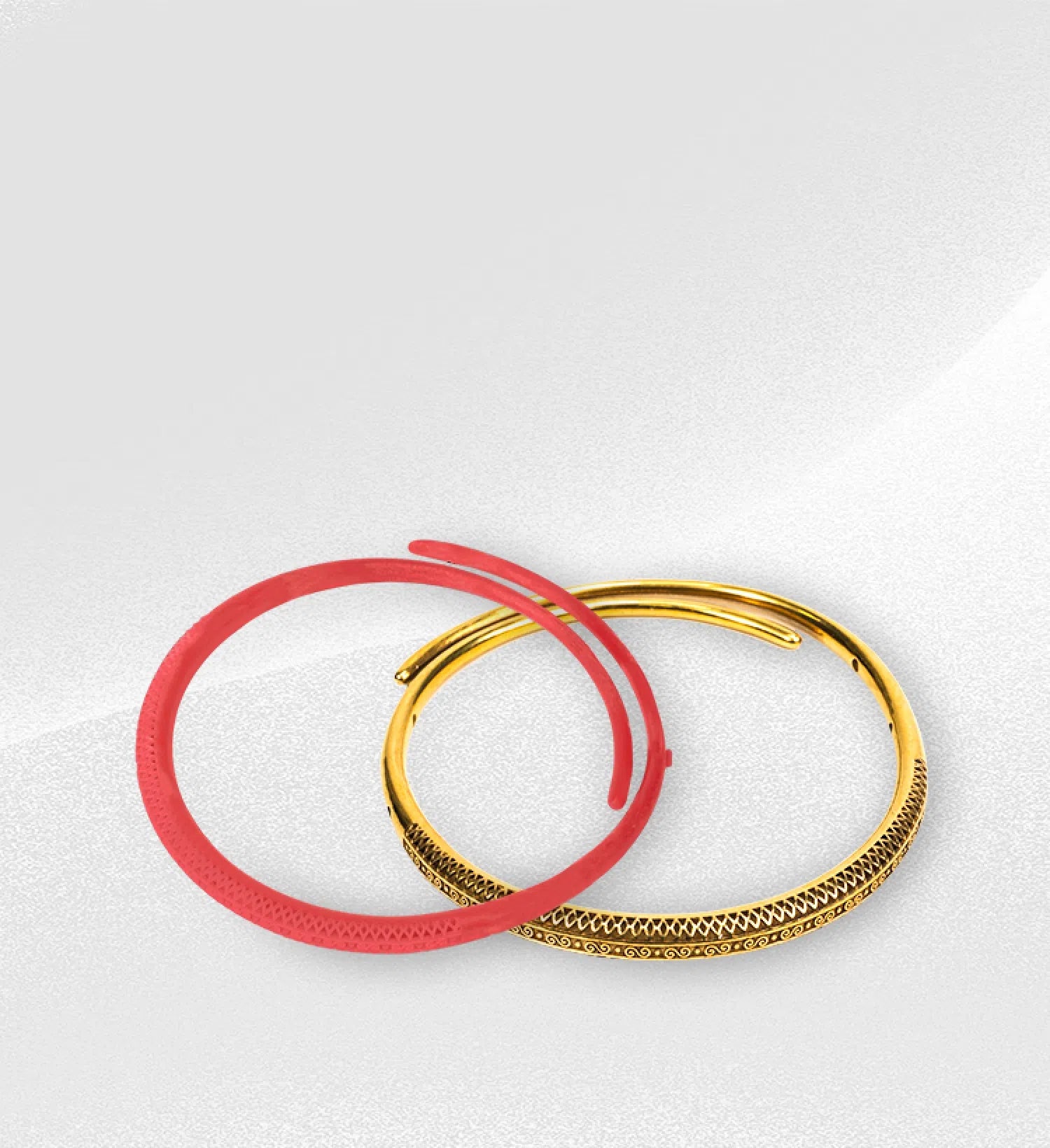

a gold bracelet made using waxjet 510 3d printing technology
a gold bracelet made using waxjet 510 3d printing technology

Brand New Precision

2900*2900*1700 DPI
sets a new standard for precision in jewelry 3D printing.
15μm per layer
represents much smoother, clearer details, less post-processing.
lower costs
A mold created using a wax pattern that requires less polishing translates to lower cost.
Capacity Upgrade of flashforge waxjet 510 3d printer
Capacity Upgrade of flashforge waxjet 510 3d printer

Technology and Material

Capacity Upgrade

10 %
material costs reduced by
65 %
Yield increased by over
Moldless Manufacturing by using Flashforge waxjet 510 3d printer
Moldless Manufacturing by using Flashforge waxjet 510 3d printer

Moldless Manufacturing

Reduce mold-making and retouching costs, cutting time to market by 2/3.
k gold 3 ring made using waxjet 510 3d printing technology
k gold 3 ring made using waxjet 510 3d printing technology

Support Various K Gold Styles

Custom

Stone-setting chain jewelry
Stone-setting chain jewelry

Stone-setting chain

Printing time: 1hr7min

Wax pattern weight: 4.2g

Usage: Setting gemstones on the wax model can be precisely positioned and angled, reducing the need for cutting and wasting precious metals..

Compared with the traditional process

Icon of 50%

Shorten the time to market

Icon of 45%

Reduce
labor costs

Flashforge waxjetprint software
Flashforge waxjetprint software

WaxJetPrint

WaxJetPrint is an all-in-one software that simplifies digital jewelry file slicing. It provides user-friendly composing and printing procedures for beginners.

User-Friendly Workflow

Flashforge waxjet 510 3d printing lab

24/7 Printing,
Unattended & Continuous

complexed model printed by flashforge waxjet 510 3d printer

Enhanced Wax, Ideal
for Complex Designs

complexed model printed by flashforge waxjet 510 3d printer

Contact-Free Support Removal，
Easier Post-Processing

Technical Parameter

Printing Technology

Printing Technology

Build Volume

289*208*100mm

Printing Mode

XHD:2900*2900*1700 DPI layer thickness:15um

Dimensional Accuracy

±0.04mm/20mm

Power Supply

AC220-240V，50Hz，4KW

Material Specifications

Material Name

FFWJ1200

FFWJ3200

Material Type

Part material

Support material

Net Weight

1.5kg/bottle

1.6kg/bottle

Composition

100% wax

Wax support materia

Color

Red

White

*Conditions: ①Volumetric Shrinkage SH/T 0588-1994; ②Needle Penetration Hardness GB/T 4985-2010; ③Ash Content GB/T 14235.3-1993

Technical Parameter

Printing Technology

MultiJet Printing (MJP)

Material Name

FFWJ1200

FFWJ3200

Build VolumeBuild Volume

289*208*100mm

Material Type

Part material

Support material

Printing Mode

XHD:2900*2900*1700 DPl; layer thickness:15um

Net Weight

1.5kg/bottle

1.6kg/bottle

Dimensional Accuracy

±0.04mm/20mm

Composition

100% wax

Wax support material

Power supply

AC220-240v,50hz,4kw

Color

Red

White

Equipment Dimensions

1352*775*1600mm

Density@95°C(Liquid)

0.79g/cm³

0.85g/cm³

Net Weight

480kg

Melting Point

68℃

55℃

Gross Weight

630kg

Softening Point

63℃

—

Package Size

1530*900*1837mm

Volumetric Shrinkage

1.1%

—

Slicing Software

WaxJetPrint

Linear Shrinkage

0.7%

—

Supported File Format

.stl/.slc

Needle PenetrationHardness

9

—

Email Notification

√

Ash Content

<0.01%

—

Hard Disk Capacity

500g

Description

High-precision castingwax

Hands-free dissolvable
support material

Connectivity

Network 10/100/1000 Ethernet/UsB

Supported Operating System

Windows7 /Windows 10(64bit)

Working Environment

Temperature:18-26°C; humidity: 30-70%
